The Vortex Cylinder Stove, takes down smaller, weighs less, and it puts out more heat than SS stoves twice its size. While
wood burning stoves are not what some would call "ultra light", this one is about as light as they get. The titanium body,
cylindrical shape along with a damper, make this stove burn very efficiently.  The Vortex Cylinder Stove is very basic.  Its
been stripped down to pure light weight function, while still retaining big performance.  It features a 2-3/8 inch pipe along
with  all the great heat transfer properties of titanium .  How do you cook on a round top stove?
 The 2 titanium support rods
across the top of the stove will support over 5 lbs.  The lack of full contact  means it's not as efficient for cooking as a flat top
stove, but it still works.  We recommend using the stove without a spark arrester, the damper works fine for controlling the
burn rate.  Burning a stove with the damper wide open wastes wood and increases the draft rate ... that's when you get
sparks.
If you want a spark arrester, order one here
Titanium pipes:  We have been using titanium pipes on our stoves since 2006.  These pipes have several advantages over
the stainless steel pipes (cost not being one of them).  The first is of course weight.  The titanium pipes are 30% lighter and
20% thicker than their stainless counter parts.  While being 30% lighter, these pipes are also stronger.  So not only are they
lighter, stronger, and last a life time, the titanium pipes are also more efficient. Titanium transfers heat far better than
stainless, so by using the titanium pipe you get more heat radiated into your tent, rather than lost up the pipe.
.. The original .. Still the best..

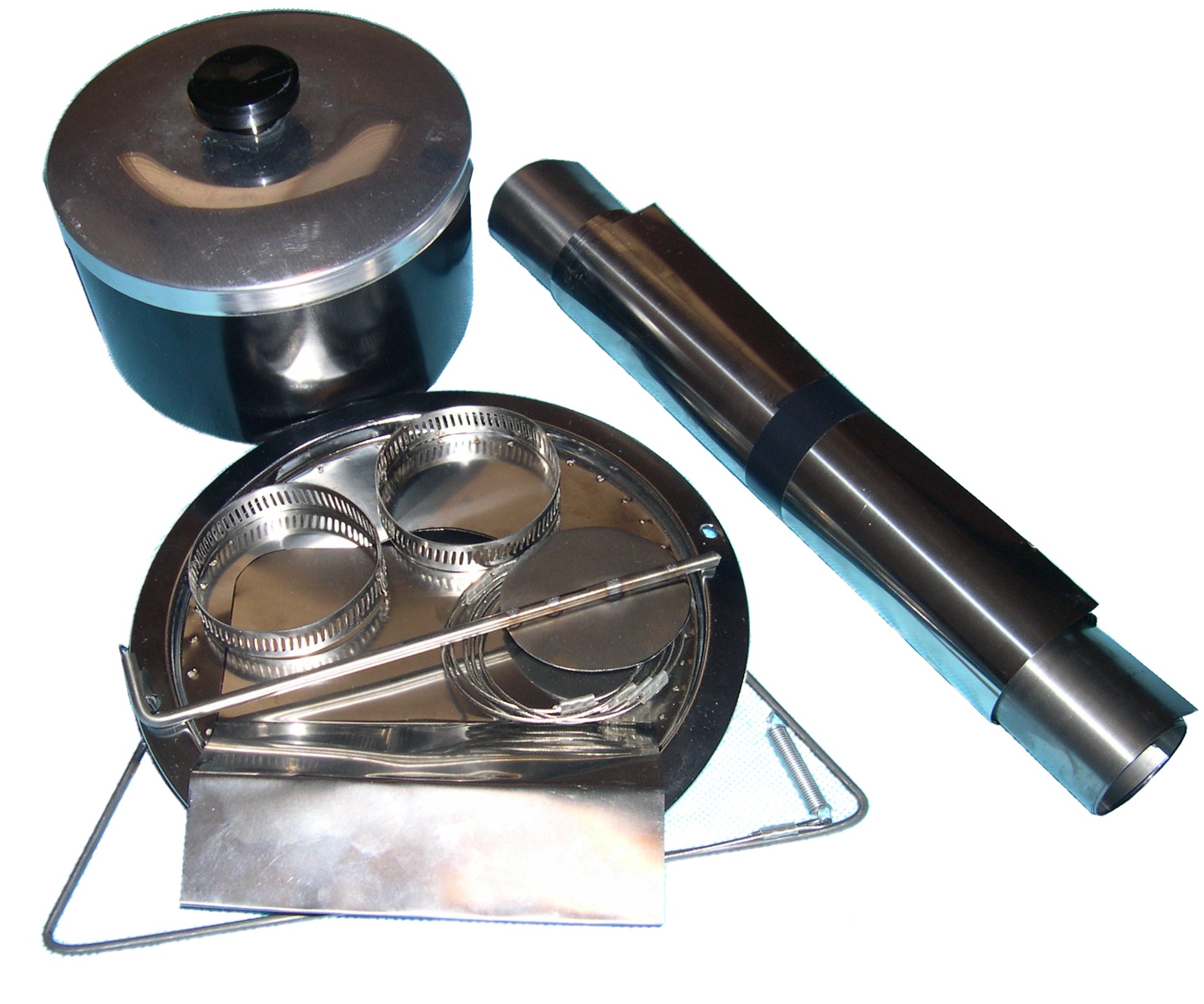

..Features:

- Roll up Stove Pipe (2-3/8" dia)
- Ti Ends
- Ti Roll up Body
- Ti Damper
- Ti Support Rods
- Ti Legs Front & Rear
- Roll up fire resistant Protection
Platform
- Storage Bag for Ends & Parts
- Wrap for Pipe, Stove Body, Platform

Stove Length  ...12 inch ...16 inch ...
20 inch


Stove Height ..... 9 inches
Stove Specifications:
  With titanium pipe
12" cylinder stove

Weight:
 12oz, Stove body and parts, 4oz pipe wrap,
bag, platform, 10oz for 7' Ti pipe, .  1lbs 10oz total weight
with 7' Ti pipe
Capacity:   ~485 cubic inches   7.5" X 12"

Price:       $240 with 7ft titanium pipe
.....In Stock........

Pipe Size/Price
16" cylinder stove

Weight:
 14oz, Stove body and parts, 4oz pipe wrap,
bag, platform, 10oz for 7' Ti pipe.  1lb 13oz total weight
with 7' Ti pipe
Capacity:   ~660 cubic inches   7.5" X 16"

Price:       $255 with 7ft titanium pipe
......In Stock.......

Pipe Size/Price
20" cylinder stove

Weight:
 18oz, Stove body and parts, 7oz pipe wrap,
bag, platform, 10oz for 7' Ti pipe.  2lbs 3oz total weight
with 7' Ti pipe
Capacity:   ~928 cubic inches   7.5" X 20"

Body is 0.008" thick ... 60% thicker than the 12" & 16"

Price:
$275 with 7 ft titanium pipe
......In Stock.......

... New for 2018 ...
Pipe Size
New in 2018 is a 20 inch
version.  The longer body will
allow for use of longer wood and
increased burn time.  The 20"
body is also 60% thicker than
the 12 inch and 16 inch for
better durability with the longer
body.

Make sure you get the right
size pipe.  We like to see at
least 1 ft of pipe above the peak
of the tent.  So if you have a
tent that is 7.5 ft tall you want
an 8 ft pipe.  Longer is better up
to a point.  Pipes that are over
2.5 ft above the peak could
cause problems in high winds.
